Description
Overview

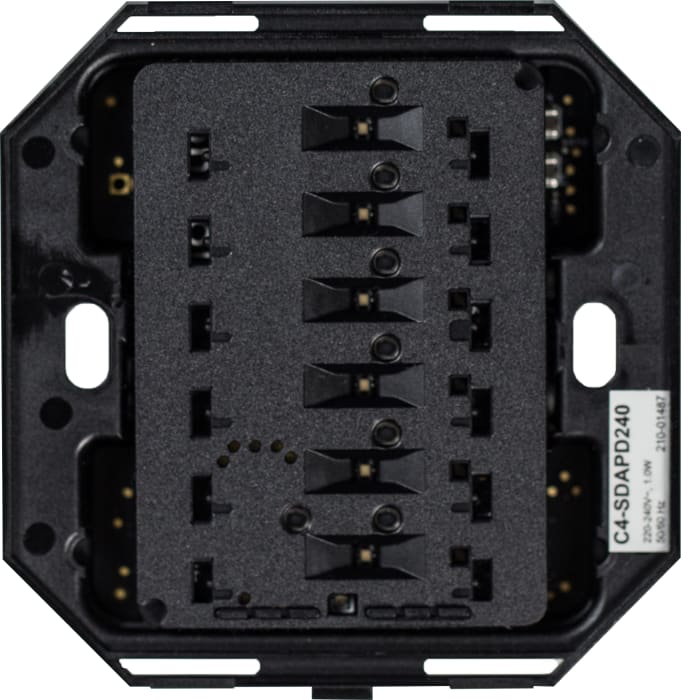

The Control4® Square Dual Load Wireless Adaptive Phase Dimmer combines elegant dimming with a configurable keypad for the ultimate in lighting control of up to two lighting loads. Unlock the power of one-touch automation by simply replacing an existing light switch with a wireless dimmer.
Features
- Provides independent dimming control of up to two lighting circuits.
- Turns a standard light switch or dimmer into a fully customizable keypad and dimmer.
- Wireless communication and standard wiring provide easy installation in new construction and retrofit environments.
- Compatible with a variety of load types including LEDs, incandescent, halogen, electronic low-voltage (solid state) transformers, magnetic (iron core) low-voltage transformers, fluorescents, compact fluorescents.
- Supports both forward-phase (leading edge) and reverse-phase (trailing edge) dimming.
- Automatically detects load type and determines the appropriate dimming type.
- Protection circuitry prevents device damage in case of short circuit or excessive load.
- Continuously measures energy being used by the attached load.
- Configure with two to seven buttons using five different button sizes for a total of 38 possible configurations.
- Easy reconfiguration means there's no need to worry about how many buttons will be needed on a specific dimmer before (or even after) installation.
- Elegant, sophisticated design makes a beautiful addition to any home or business.
- Custom engraving available to clearly identify each button.
- Backlit button engraving with programmable color control for easy readability regardless of time of day or light level.
- Programmable RGB LEDs provide status feedback for lighting and other devices in the system.
- Ambient light sensor can automatically adjust backlight and status LED brightness depending on the light level in the room.
- Ships as "neutral" device with no buttons included. Keypad-style button kit and rocker-style button kits sold separately in a variety of colors (see "Available accessories").
- Control4® screw-less faceplates sold separately, provide a sleek profile (see “Available accessories”).
- Installs in standard square (UK/China-style) single-gang wall box.
- Not compatible with round (EU-style) or UK-style double-gang wall boxes.
