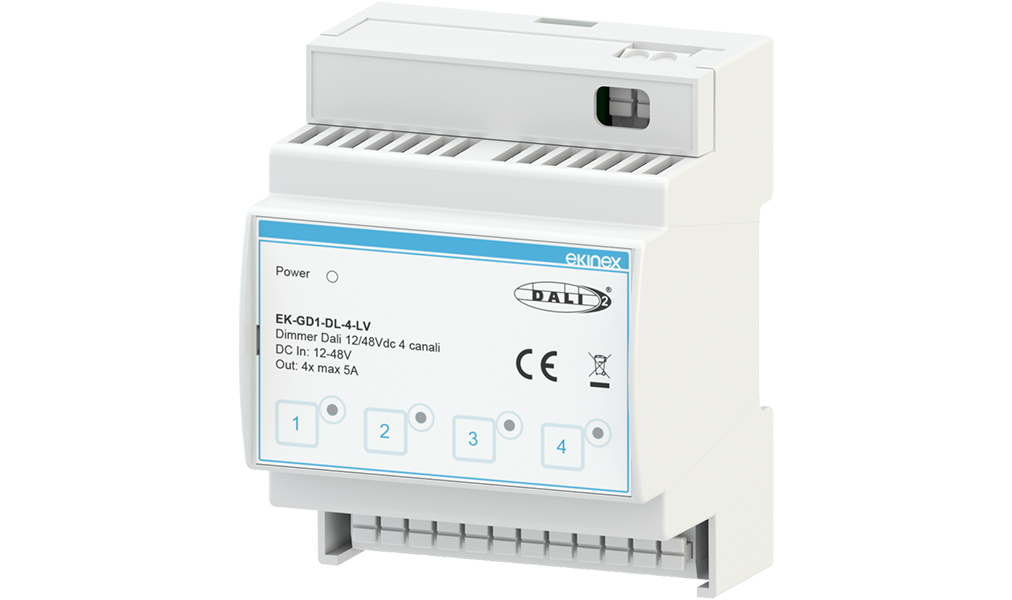

DALI Dimmer 12/48 Vdc 4-channels
CODE: EK-GD1-DL-4-LV
Description
The 4-channel DALI-2 dimmer allows control of brightness, temperature and RGBW (DT6) colour of low-voltage LED sources. Power supply from 12 to 48Vdc, PWM dimming. Compliant with the new FLICKER-FREE standard. Input Bus DALI-2 reference IEC 62386 standard.
Technical data
- Device power supply: 10.8 Vdc (min)... 52.8 Vdc (max)
- Power consumption (at 40°C): 480W total
- Dali absorption 1.53mA
The graph shows the phenomenon of flickering as a function of frequency, measured over the entire dimming range. The results show the low risk zone (yellow) and the zone with no observable effect (green). Defined by IEEE
.svg)
.svg)
Functions / Features
- Plastic housing
- Device with 4 modular units
- IP20 degree of protection (device installed)
Functionality
- Memory function
- Brightness adjustment until complete switch-off (dim-to-dark)
- Minimum brightness level: 0.1% (1% in push)
- PWM modulation with settable frequency (300/600/1200/2000Hz)
- Settable dimming curve: linear / quadratic / exponential
- Smooth switching on and off
- Optimised output curve
