G6 Dome
UVC-G6-Dome-B

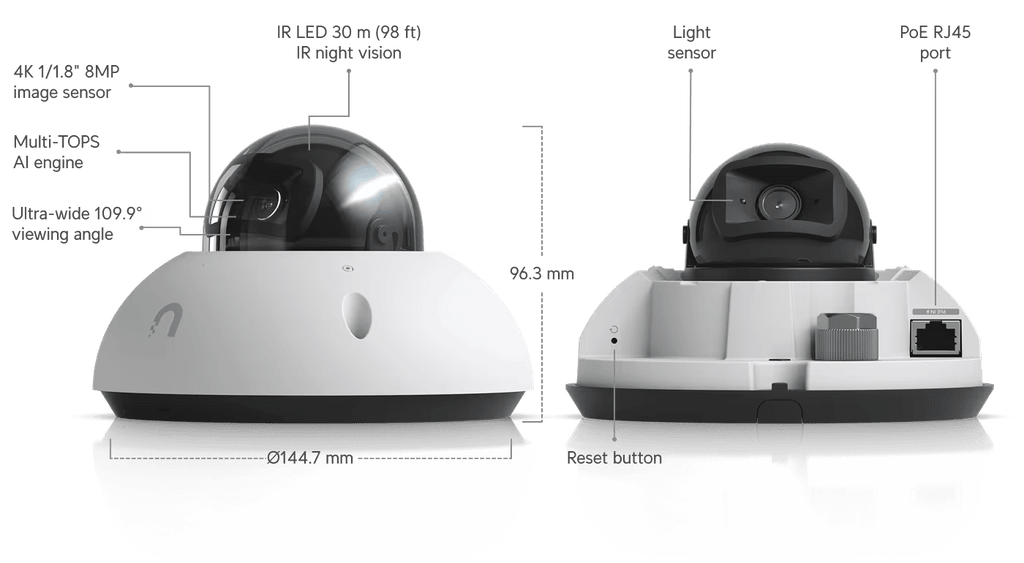

All-weather, vandal-proof 4K PoE camera with a 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and long-range IR night vision ideal for discreet installations in high-traffic areas.
| Feature |
Specification |
| Overview |
|
| Dimensions |
Ø144.7 x 96.3 mm (Ø5.7 x 3.8")
|
| IR Night Vision |
30 m (98 ft) |
| Face Recognition |
✓ |
| License Plate Recognition |
✓ |
| Smart Detections |
People, Vehicles, Animals
|
| Resolution |
4K |
| Networking Interface |
|
| Field of View |
H: 109.9°, V: 56.7°, D: 134.1°
|
| Audio |
Microphone |
| Weatherproofing |
IP66 |
| Tamper Resistance |
IK10 |
| Mounting |

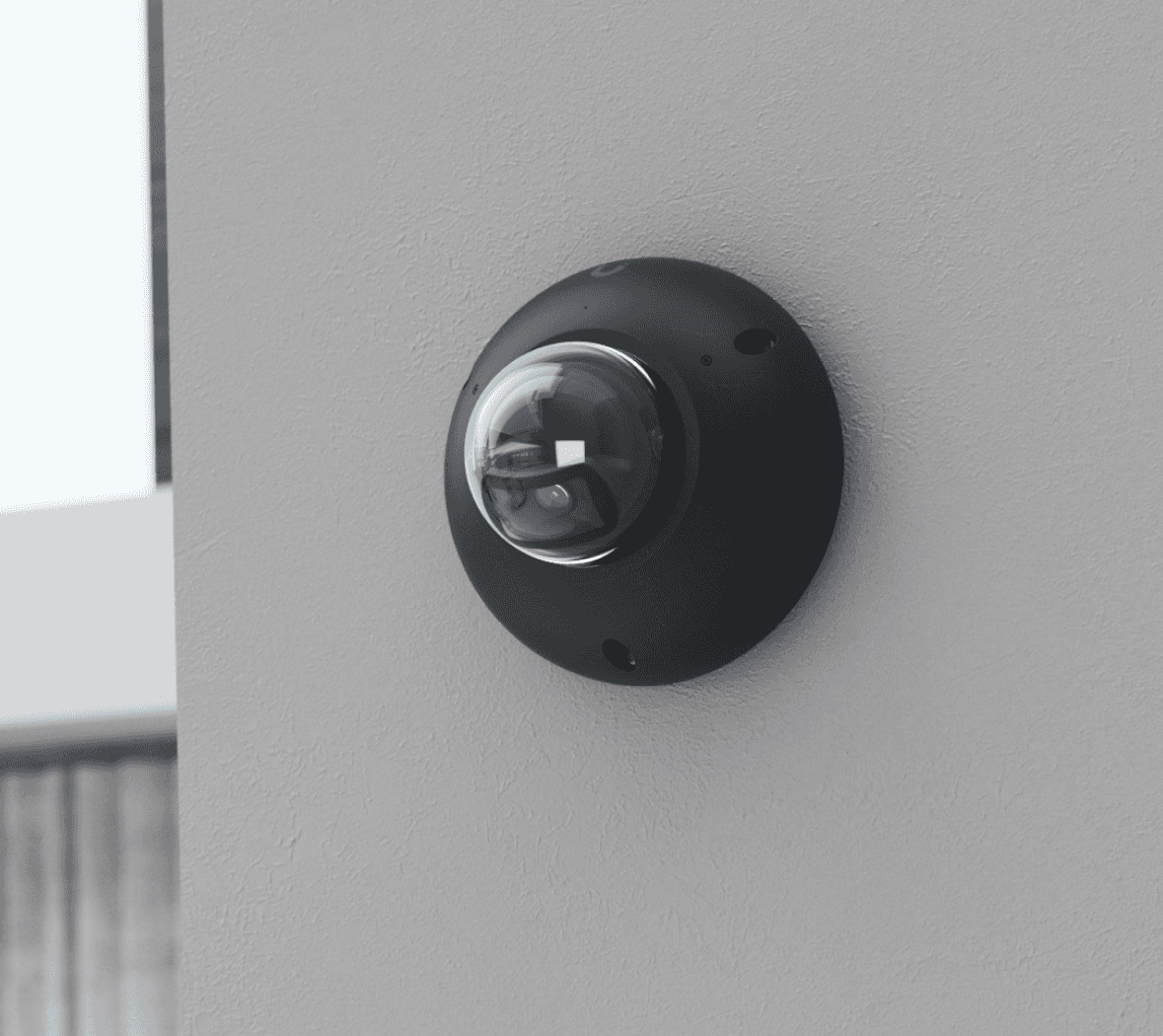

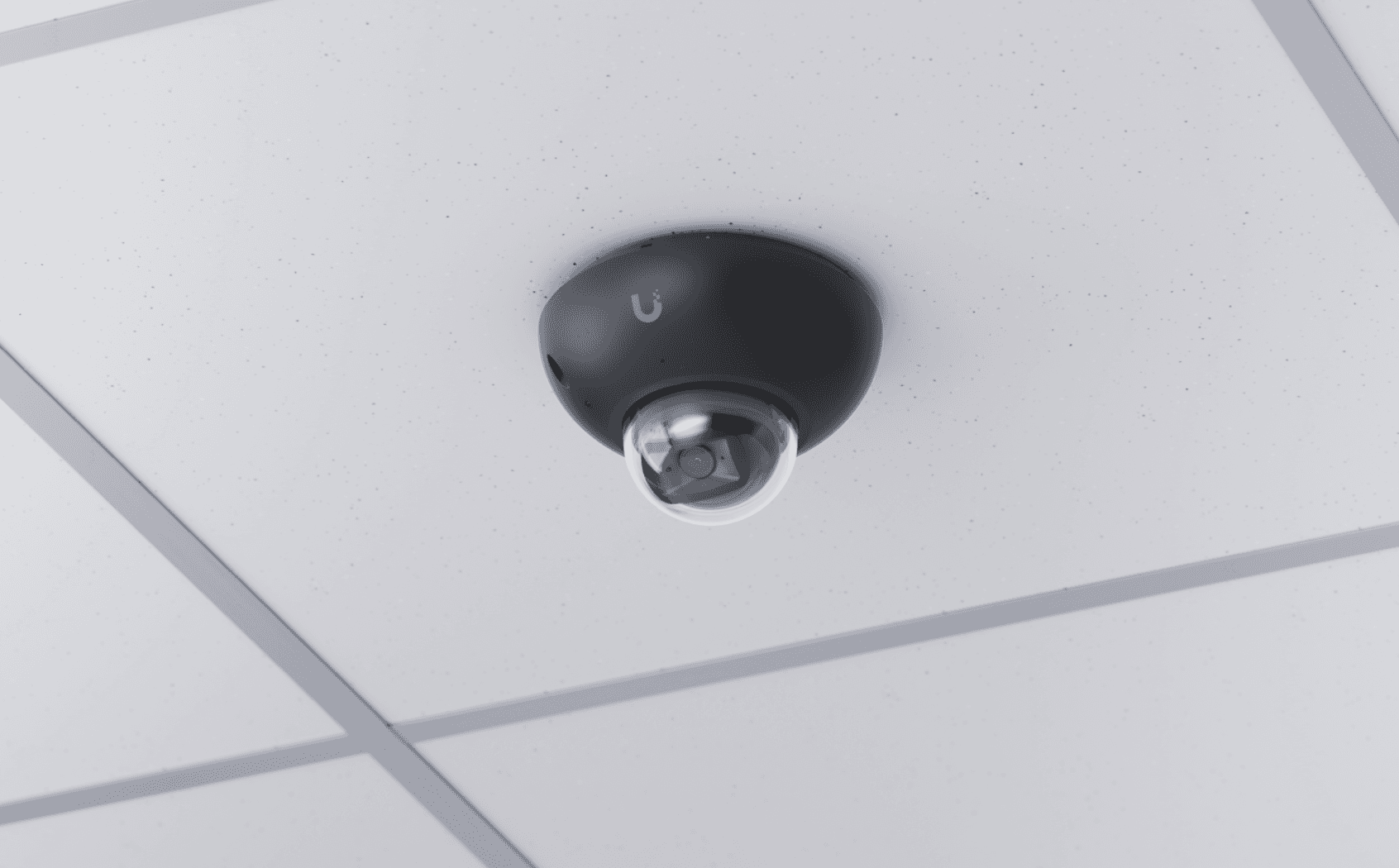

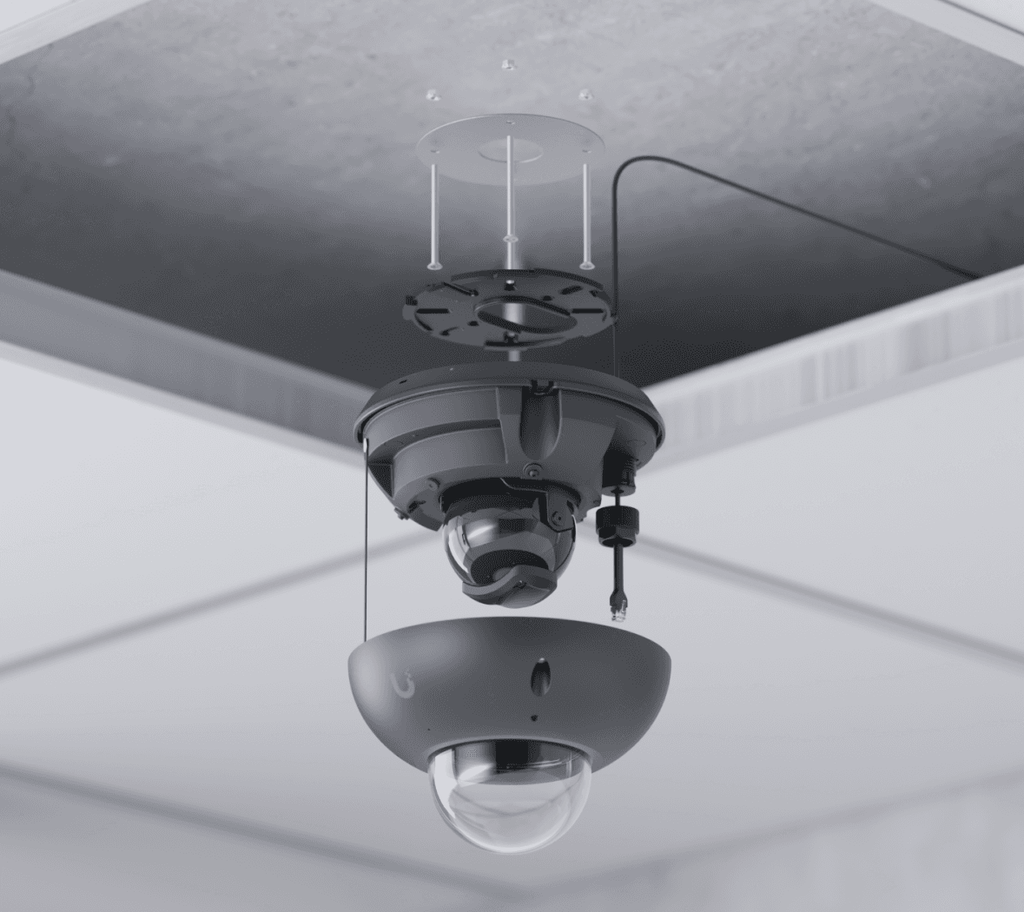

Ceiling, Wall mount (Included); Optional: Gang Box Mounting Plate, Camera Dual Mount, Flush Mount, Weather Shield
|
| UniFi Application Suite |
Protect |
| Performance |
|
| Networking Interface |
|
| Video Image Settings |
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
|
| Max. Frame Rate |
30 FPS |
| Resolution |
|
| Optics |
|
| Sensor |
1/1.8" 8MP |
| Lens |
|
| Night Mode |
Built-in IR LED illumination and IR cut filter
|
| Hardware |
|
| Max. Power Consumption |
9.25W |
| Supported Voltage Range |
37—57V DC |
| Power Method |
PoE |
| Processor |
Quad-core Arm® Cortex®-A53 based chip
|
| Weight |
820 g (1.8 lb) |
| Enclosure Material |
Aluminum alloy |

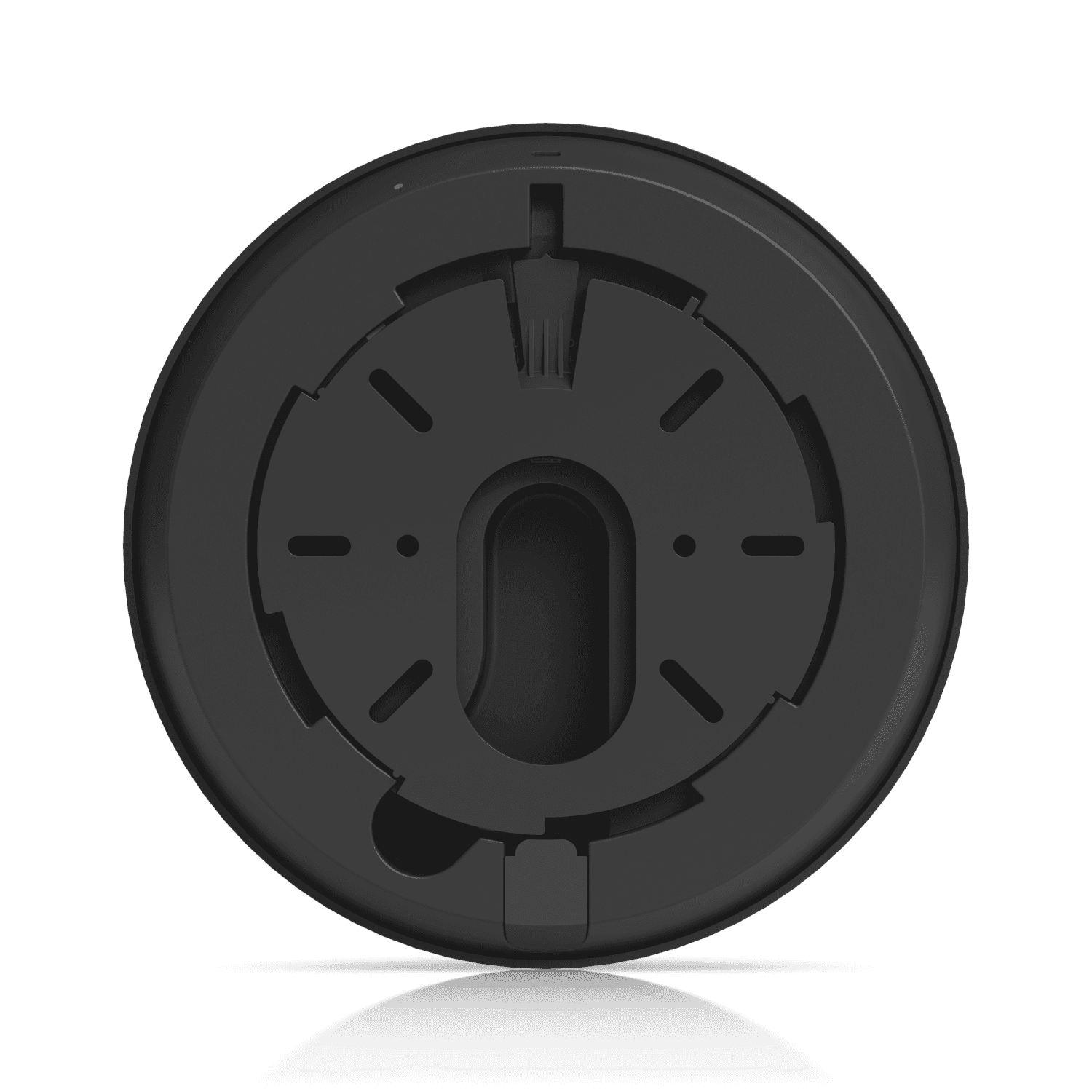

| Mount Material |
Polycarbonate |
| Button |
|
| Ambient Operating Temperature |
-20 to 50ºC (-4 to 122ºF)
|
| Ambient Operating Humidity |
|
| NDAA Compliant |
✓ |
| Certifications |
CE, FCC, IC |
