Overview

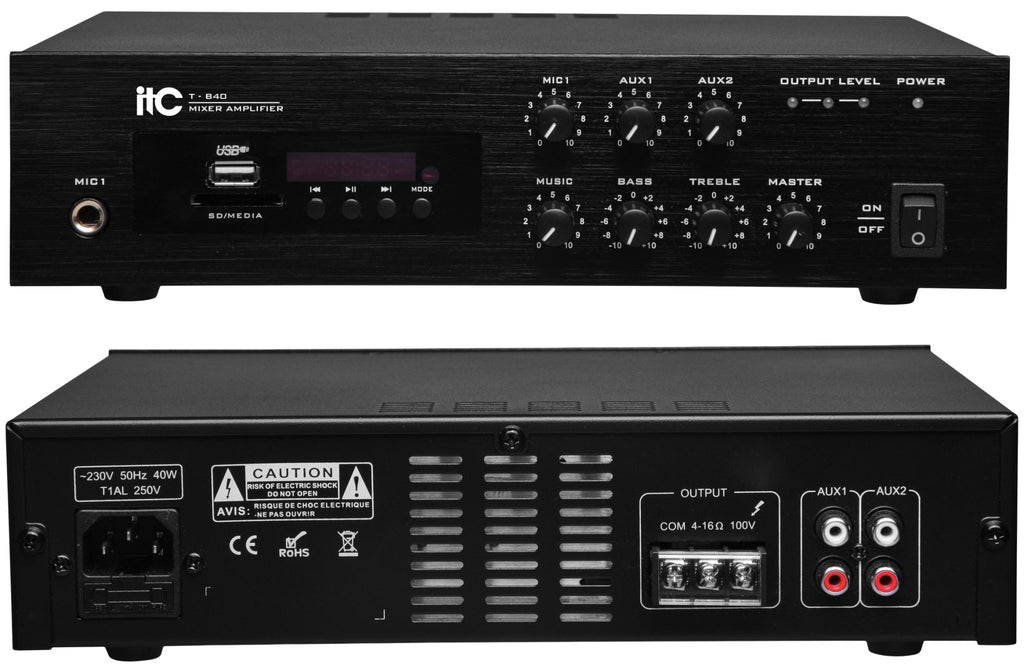

* This is a mini desktop constant voltage amplifier, with elegant appearance, lightweight,
and easy to carry. It can be used for background music playing and broadcasting in family,
leisure cafes, classrooms, and other small indoor venues.
Function Features
* With desktop design, elegant appearance, lightweight, and easy to carry.
* It can be used in different sound effects places. These series include 20W, 40W, and 60W,
which can be selected according to room size inquiries.
* Unmatched sound quality, it can connect 4~16Ω output, meanwhile, it can connect
100V output, not only can play short distance beautiful music, but also can broadcast
long-distance beautiful voice.
* The output terminal use standard 6.3 audio microphone jack and line input uses
RCA jack, to provide users with different audio input interface options.
* 1 Microphone input with independent volume control.
* 2 audio inputs with independent volume control.
* With the function of auto-play MP3 and power memory.
* With the function of priority, when MIC 1 input, the other audio signal can be
disconnected .
* With power indication light, when connecting electrical power and turn on the switcher,
the light turns blue.
* With signal indicator light and the light can show different colors according to
a different signals.
* With protection function of short circuit, overload, over temperature.
* With the function of MP3 module, readable MP3 files in USB flash disk, SD card.
Support function of mobile blue tooth.
Specifications
Product Model |
T-B40 |
T-B60 |
T-B20 |
Protection |
Overheating protection, short circuit protection, |
Power Consumption |
80W |
120W |
40W |
Dimension |
284 x 188 x 66.5mm |
Weight |
3.5Kg |
4.2Kg |
2.8Kg |
Tone |
Bass: 100Hz±10dB, Treble: 10KHz±10dB |
|
overload protection |
Input Power |
~220V-240V 50/60Hz |
Impedance |
AUX Input: 350mV, unbalance RCA connector |
Input sensitivity& Source |
MIC Input: +5mV, unbalance 6.3 connector |
Priority Function |
MIC1 input has the priority than other input |
T.H.D |
Rated power output, distortion rate≤1% |
SNR |
≥75dB |
Frequency response |
80~16KHz(-3dB) |
Rated output power |
40W |
60W |
20W |
Speaker output |
4~16Ω/100V |
