Overview

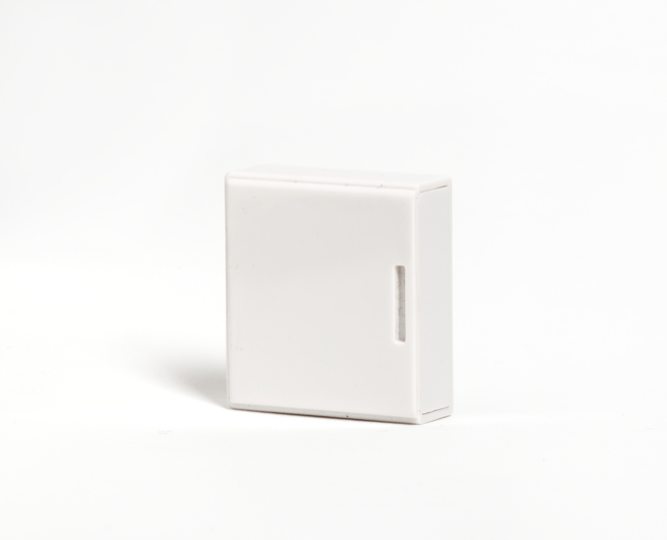

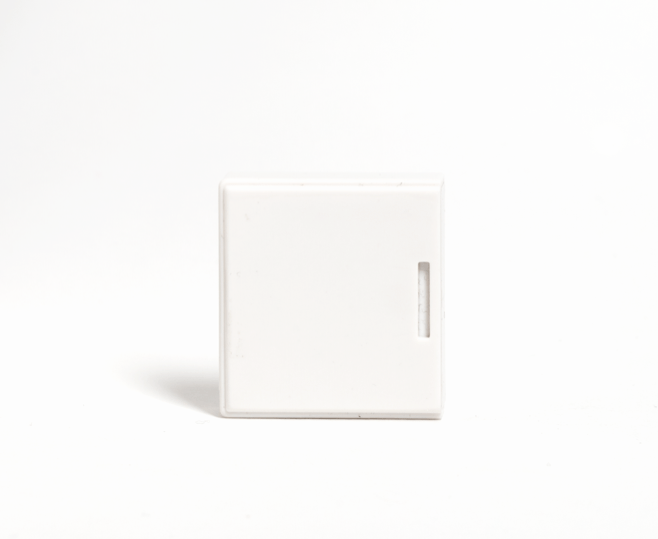

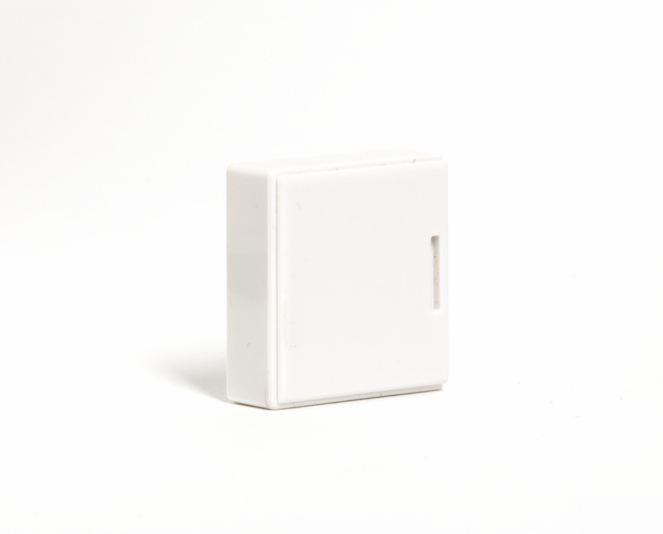

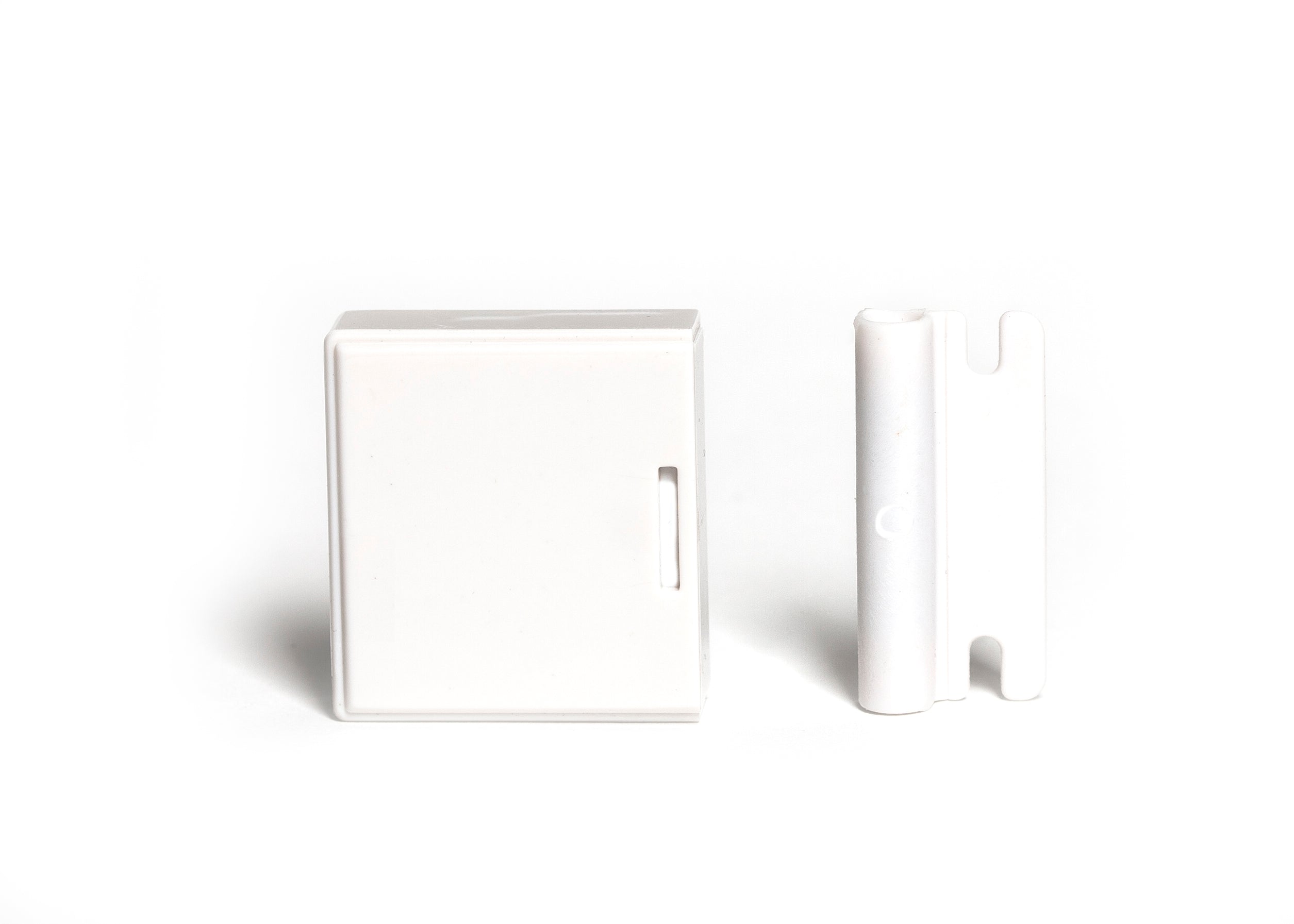

NYCE’s wireless Door/Window Sensor combines the features of a Door/Window Sensor and ZigBee (802.15.4) radio into a single tiny device. Packed with intelligent features, the Door/Window Sensor expands your network’s possibilities – monitoring any type of door or window anywhere in the home - and all without any wires.
Please note: These devices are not ZigBee routing nodes. To ensure proper ZigBee network performance, Control4 light switches/dimmers or other repeating devices should be installed first, and NYCE devices should be identified near their final installation point.
- Compact Size
- Three color LED event indication
- Long Battery Life (up to 5 years)
- Easy Battery Replacement
- ZigBee wireless Low Power Communication
- Easy ZigBee Network Device Association
- Reports Open/Closed Status of Doors and Windows
Specification
SPECIFICATIONS
Battery Voltage 3.0VDC Lithium
Battery Cell CR2032
Battery Life Up to 5 years
Ambient Temperature +14 to +122F, -10 to +50C
Dimensions 1.26” x 1.18” x 0.39”
32mm x 30mm x 10mm
Communication ZigBee, HA1.2 Compatible
Communication Range Up to 125m (400’) open field
Color White
Weight 11 grams with battery
