FLUSH MOUNTS FOR CONTROL4 C4-T4IW8

• New Construction

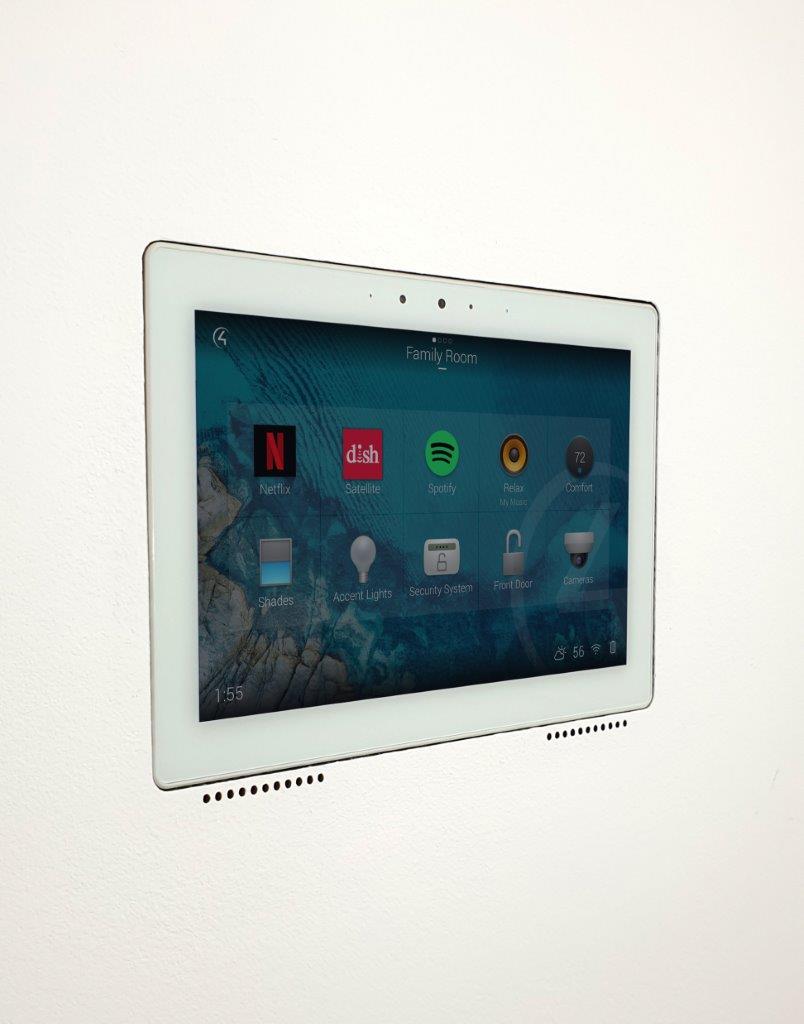

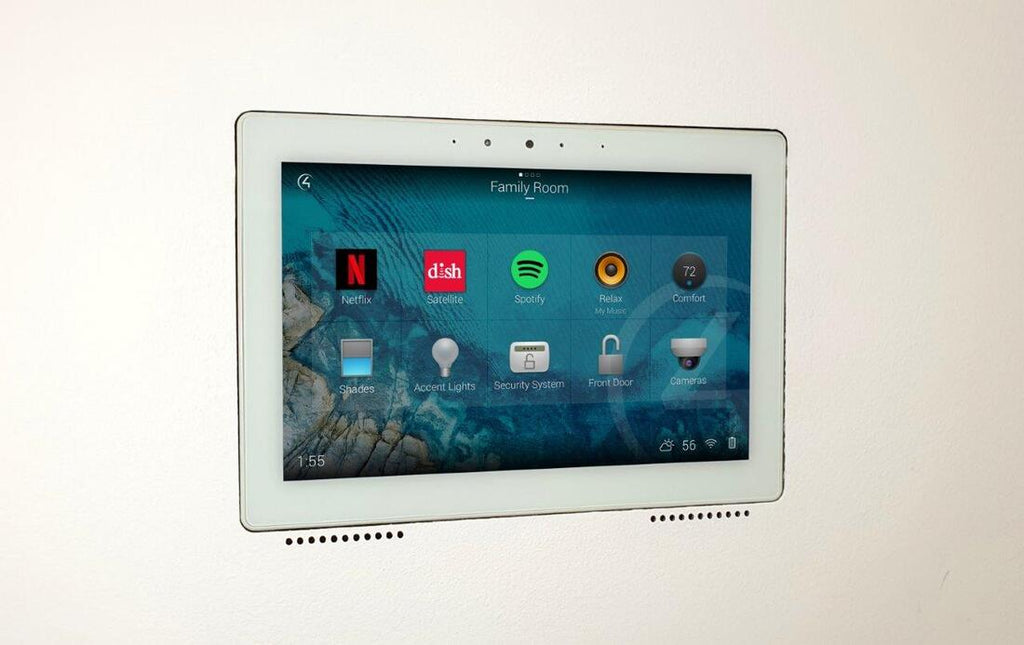

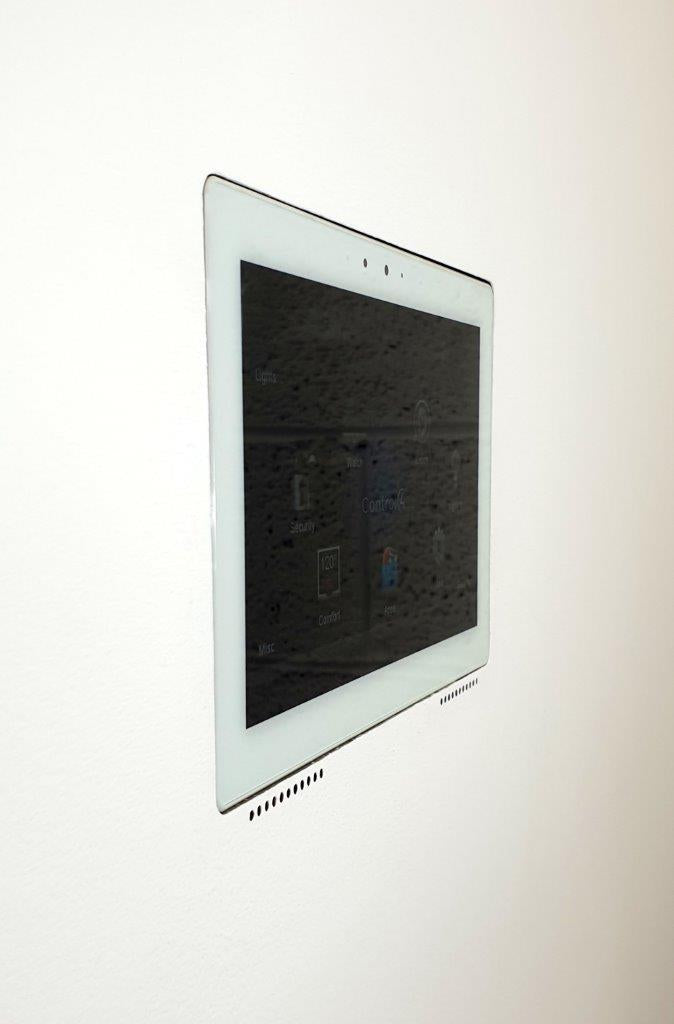

• Flush with the wall.
• For low voltage (POE) only
• For 1/2" drywall. To install in 5/8" use a shim pack 10-01-067.
• ​The adapter is supplied unpainted (To be painted after installation as part of the wall).
• With speaker/mic grills.
• For concrete installation use concrete adapter 100-1-790

• Dimensions (W/H/D): 267mm (10.51")/ 227mm (8.94")/44mm (1.73”)
• Power Supply: None (manual adapter).

SOLID SURFACE MOUNT FOR CONTROL4 C4-T4IW8-POE

007-1-900 (Spec Sheet) Solid Surface Flush with the solid surface. For low voltage (POE) only  Designed to be installed in 11.4 [0.45”] up to 40.3 [1.58”] thick solid boards. Installation adapter contains depth adjustment mechanism.  Does not include audio grills! Dimensions (W/H/D): 235.2mm (9.26")/ 175mm (6.89")/ 49.5mm (1.95”) Power Supply: None (manual adapter).  ​ 007-4-900-spc.pdf Download File
