KNX / DALI gateway 1 or 2 channels DIN-Rail mount modules

Roll over image to zoom in Click on image to zoom

KNX / DALI gateway 1 or 2 channels

Name: KNX / DALI gateway 1 or 2 channels DIN-Rail mount modules
Brand: ekinex
Availability: OutOfStock

DIN-Rail mount modules

CODE: EK-BF1-TP-D1 | EK-BF1-TP-D2

Description

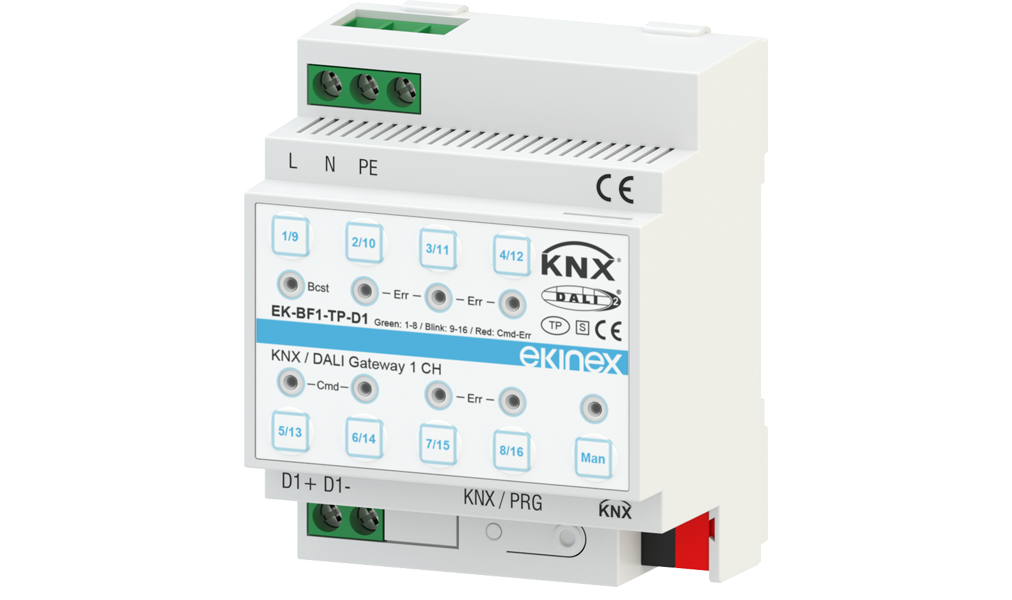

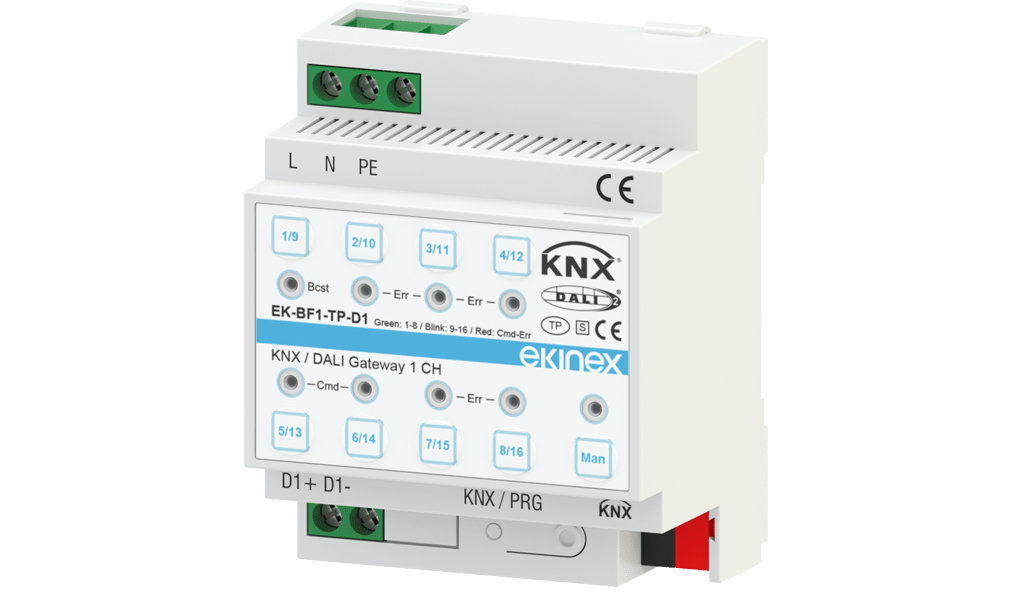

Ekinex® Gateways EK-BF1-TP-D1/D2 are devices used to control electronic control gear (ECG) with a DALI interface (according to EN 62386) via the KNX installation bus. The device converts switching and dimming commands from the connected KNX system into DALI telegrams and status information from the DALI bus into KNX telegrams.

Connections

KNX port with standard connector
Screw terminals for DALI bus

Technical Data

Device power supply: 110-240 Vac or DC
KNX bus power supply

Supply

The scope of delivery includes a terminal for connection to the KNX bus line and a 1.2 x 2 cm heat shrink tubing for additional insulation of the bus cable.

Other information

DALI® (Digital Addressable Lighting Interface) is a worldwide standard for interfacing lighting control solutions whose data transmission protocol is contained in IEC 62386. DALI is a registered trademark of ZVEI (Zentralverband Elektrotechnik- und Elektronikindustrie e.V.).

With firmware version 0.2.5 or higher, the device is certified according to EN 62386-101 and -103 ed2 (DALI2) and therefore authorised to carry the DALI-2 logo.

Functions / Features

Besides the pure gateway function, the EK-BF1-TP-D1/D2 also offers numerous additional functions:

EK-BF1-TP-D1: addressing of up to 16 DALI groups or 64 individual ECGs
EK-BF1-TP-D2: addressing of up to 2x16 DALI groups or 2x64 individual electronic ballasts
Flexible DALI commissioning concept with ETS5
Light colour control using type 8 ECG devices
Light colour control according to different ECG subtypes
Hourly programming for group and ECG control by value and/or colour
Different operating modes such as permanent mode, night mode or staircase mode
Integrated operating hours counter for each group and ECG with alarm when maximum duration is reached
Individual fault recognition with objects for each lamp / ECG
Complex failure analysis at group/device level with calculation of the number of failures and failure rate
Fault threshold monitoring with individually configurable threshold values
Scene module for extensive scene programming and dimming possibilities
Quick replacement' function for easy replacement of individual defective ECGs
Manual control of group and broadcast telegrams via control buttons on the device
Fault status signalling via LED on the device
